QFT3000
QFT3000

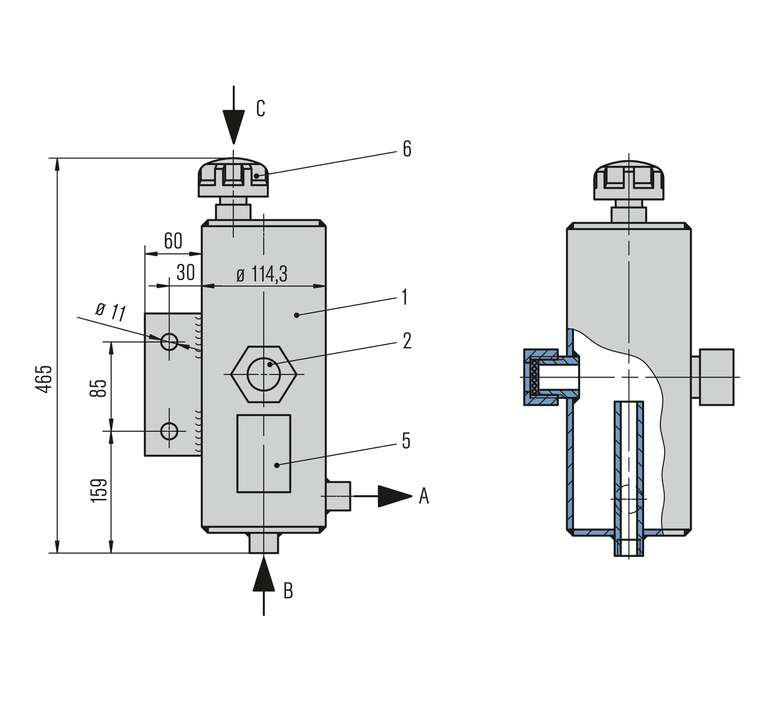

| Item | Description |
| 1 | Storage tank (capacity 3 l) |
| 2 | Sight glass |
| 5 | Name plate |
| 6 | Filter and breather |
| Connections | |
| A | To the mechanical seal |
| B | From the mechanical seal |
| C | Filling |
QFT3000
Features

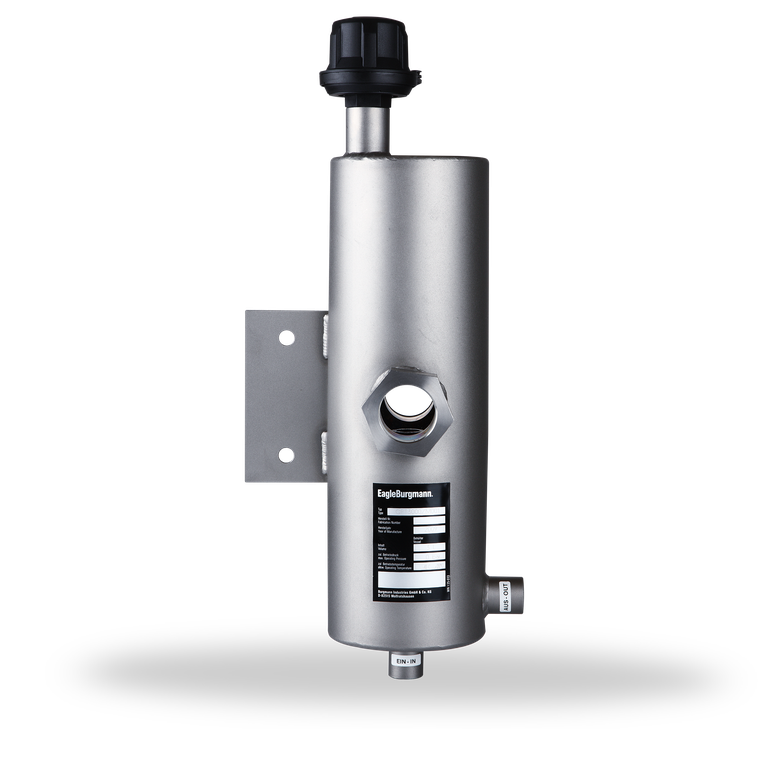

Quench fluid supply systems are used to supply single or tandem mechanical seals. They act as a convenient fluid reservoir. The exchange of fluid takes place by the thermosiphon principle or by forced circulation, e.g. with a pumping screw. The QFT3000 stainless steel tank is equipped with a sight-glass for monitoring the MIN filling level and can be fastened with a lug fixture.
Supply of mechanical seal based on API 682 / ISO 21049, Plan 51.
Supply of mechanical seal based on API 682 / ISO 21049, Plan 51.
Advantages
- Two sight-glasses fitted on opposite sides enable optimum reading of the fluid level and condition of the medium
- Tank made of 1.4571: high resistance to corrosive media
- Return flow via integrated rising pipe for selective current control
- Combined filling and ventilation filter in the quench fluid tank for reliable operation
Recommended applications
- Chemical industry
- Food and beverage industry
- Pharmaceutical industry
Functional description
Quench fluid systems are employed:
- to absorb leakage
- to monitor the leakage rate (e.g. through periodic reading of the level in the tank)
- to lubricate and to cool the outboard mechanical seal in a tandem arrangement
- to prevent icing
- to protect against dry running
- to stabilize the lubricating film
- to exclude air from the media in order to prevent a reaction with oxygen in the air
Notes
Install the quench fluid tank approx. 1 ... 2 m (3.3 ... 6.6 ft) above the mechanical seal. Install connection pipes to the mechanical seal with low flow resistance. Pipes must vent automatically in the direction of the tank. It is imperative that air pockets are prevented. The minimum filling level must always be above the connection socket at the side (in the case of the thermosiphon principle).
Quench fluid systems can be operated in two different modes.
Quench fluid systems can be operated in two different modes.
Product variants
| Designation | QFT3000-00 | QFT3000/M001 |
|---|---|---|
| Standard design | ■ | ■ |
| Volume (liters) | 3 | 3 |
| Allowable pressure | Pressureless | Pressureless |
| Allowable temperature | -40 °C ... +120 °C (-40 °F ... +248 °F) |
-40 °C ... +120 °C (-40 °F ... +248 °F) |
| Material, tank: | ||
| 1.4571 | ■ | ■ |
| Material, filling filter | ||
| Glass-fibre reinforced polyamide | ■ | |
| Material, inspection glass | ||
| Borosilicate/PTFE | ■ | ■ |
| Process connections | ||
| G 1/2" | ■ | ■ |
Other versions on request.
